Electrical switch assembly
Multi-component switch assembly with in-line checking.
Industries / Electronics
Electronics
Electronics assembly is judged on repeatability: the same joint, the same placement, the same verified result, every cycle.
The approach
Designed around the product.
VEEMAP builds electronics assembly automation around process precision and verification — controlled joining, controlled tightening, and an electrical or visual check on every unit.
Solution families
Circuit-breaker automation
Assembly and verification for breaker builds.
Robotic soldering
Controlled, repeatable joining under robot control.
Controlled tightening
Automatic screw feeding with torque control by servo motor on a precision rotary indexer, for terminal assemblies where joint integrity is the quality characteristic.

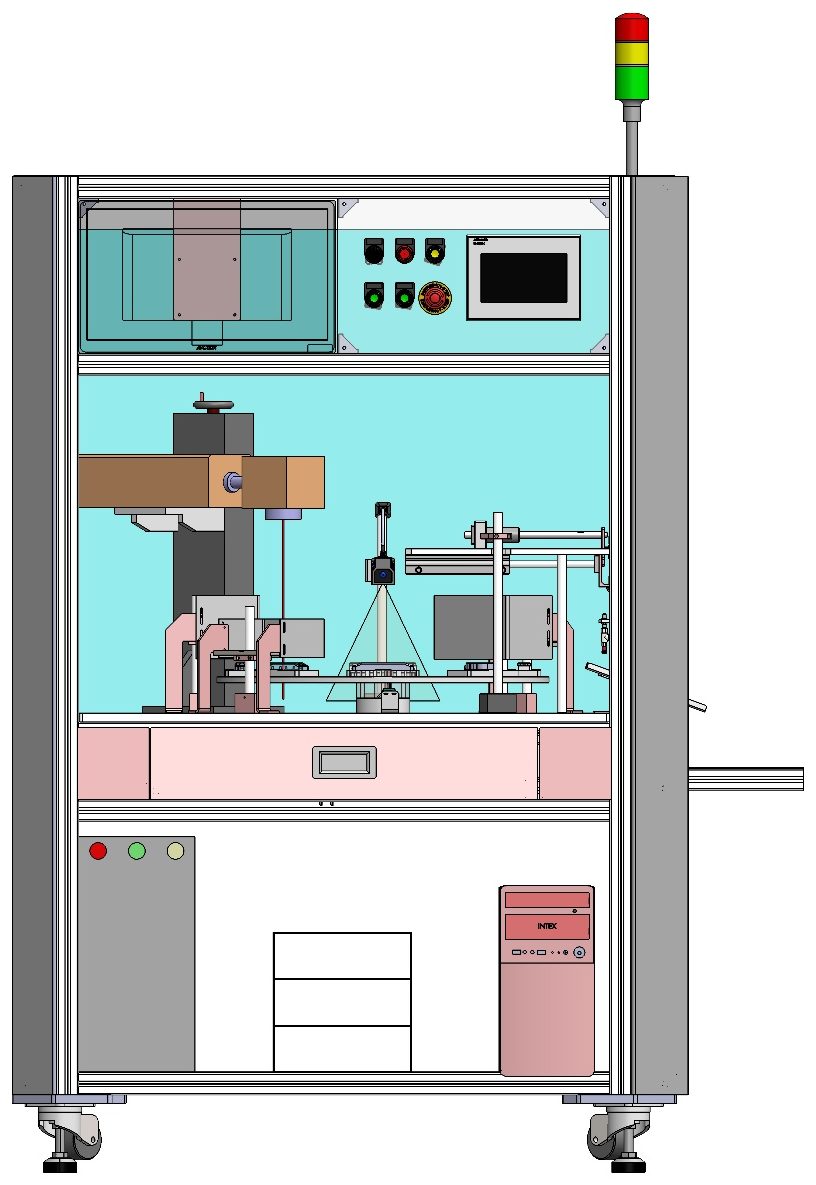

RFID processing and verification
Tag processing with a read-back check.
Electrical and functional testing
Verification designed into the assembly sequence.
Process orchestration
Step 01Component feeding and placement
Step 02Joining, soldering or tightening
Step 03Electrical and functional testing
Step 04Vision inspection
Step 05Marking and identification
Step 06Reject handling
Quality and data layer
Proven at the station.
01Electrical and functional testing on every unit02Vision inspection for placement and presence03Torque-controlled joining with a recorded result04Marking, identification and reject handling
Flexible production.
Tooling that changes between switch or breaker variants without a rebuildTorque and soldering parameters held as recipes against the product, not set by handTest sequences versioned with the product revisionReject routes designed in, so a failed unit leaves the line at the station that found it
Start a project.
Tell us the assembly, the joining process, what has to be electrically verified, and the rate and variant mix the line has to hold.
